Part# 20027013

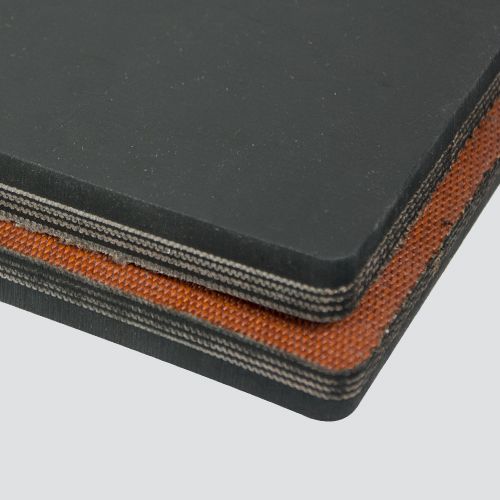

High tension belt made to convey heavy materials and withstand high impact. In order to prevent delamination, its tough, durable polyester/nylon carcass has high adhesion levels to the top cover, as well as ply-to-ply. Includes moderate oil resistant cover to withstand the effects of oil coated materials. Great choice for conveying steel, scrap metal, lumber, and logs.
SPECIFICATIONS
-
UPC: 725559284052
-
Spec#: 402
-
Ply: 4
-
Working Tension: 800
-
Color: Black
-
Compound: NBR Blend
-
Carcass: Polyester/Nylon
-
Top Surface: Smooth
-
Bottom Surface: Bare
-
Thickness / Overall Gauge: 5/8"
-
Weight (PIW): 0.347
-
Elongation @ 100%: 1.5-2%
-
Minimum Pulley: 24"
-
Temperature Range: -25°F to 250°F
-
Oil Resistant: Yes
-
Durometer: 60
-
Clipper®: Not Recommended
-
Alligator®: Not Recommended
-
Staple: Not Recommended
-
Solid Plate: 1-1/2
-
Flexco® Bolt On: 550
-
Flexco® Rivet: R6
-
Endless Splice: Bias Step
