Part# 20027011

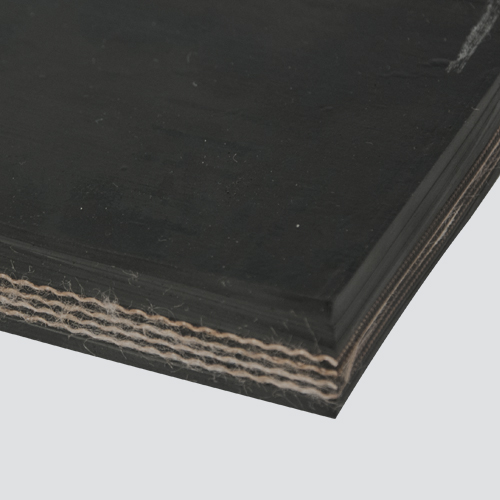

Popular high tension belting with strong, low stretch polyester/nylon carcass. Thick Grade 1 covers offer good abrasion resistance and durability. Excellent choice for mining, aggregate, glass, and cement.
SPECIFICATIONS
-
UPC: 725559284038
-
Spec#: 400
-
Ply: 4
-
Working Tension: 800
-
Color: Black
-
Compound: SBR
-
Carcass: Polyester/Nylon
-
Top Surface: Smooth
-
Bottom Surface: Smooth
-
Thickness / Overall Gauge: 3/4"
-
Weight (PIW): 0.440
-
Elongation @ 100%: 1.5-2%
-
Minimum Pulley: 24" (36" elevator)
-
Temperature Range: -25°F to 225°F
-
MSHA Approved / Fire Resistant: No
-
Oil Resistant: No
-
Durometer: 60
-
Clipper®: Not Recommended
-
Alligator®: Not Recommended
-
Staple: Not Recommended
-
Solid Plate: 2
-
Flexco® Bolt On: Not Recommended
-
Flexco® Rivet: R9
-
Endless Splice: Bias Step
