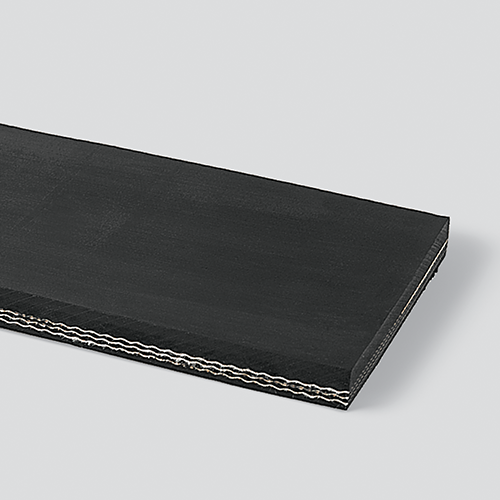

Part# 20026790
Premium belt for higher temperature requirements. Popular in cement and foundry applications. 1/4” top cover provides impact resistance and added carcass protection. Will withstand spikes up to 700°F. Max operating temperature for fines and dense baking loads is 500°F.
SPECIFICATIONS
-
UPC: 725559212093
-
Spec#: 43A
-
Ply: 3
-
Working Tension: 330
-
Color: Black
-
Compound: EPDM
-
Carcass: Polyester/Nylon
-
Top Surface: Smooth
-
Bottom Surface: Smooth
-
Thickness / Overall Gauge: 0.5"
-
Weight (PIW): 0.232
-
Elongation @ 100%: 1-2%
-
Minimum Pulley: 18" (20" elevator)
-
Temperature Range: -20°F to 700°F for 2" lumps and above, 500°F for fines and dense/baking loads
-
Oil Resistant: No
-
Durometer: 60 +/- 5
-
Clipper®: Not Recommended
-
Alligator®: Not Recommended
-
Staple: Not Recommended
-
Solid Plate: 190
-
Flexco® Bolt On: 550
-
Flexco® Rivet: R5
-
Endless Splice: Bias Step
